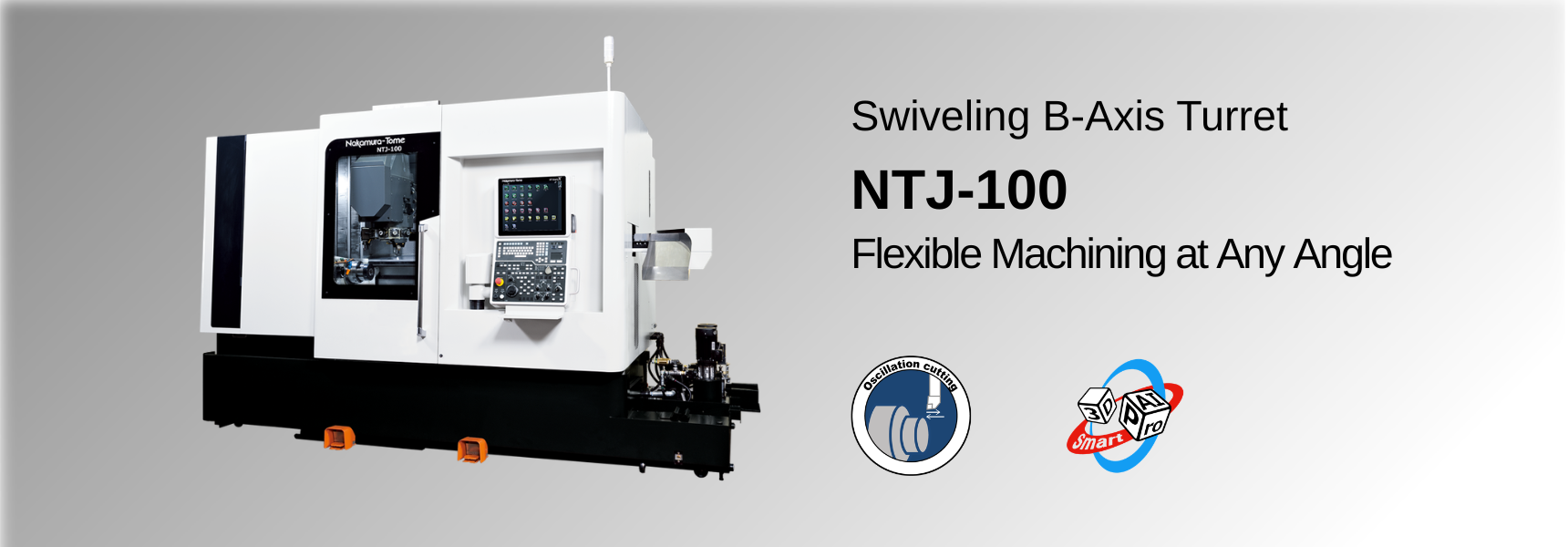

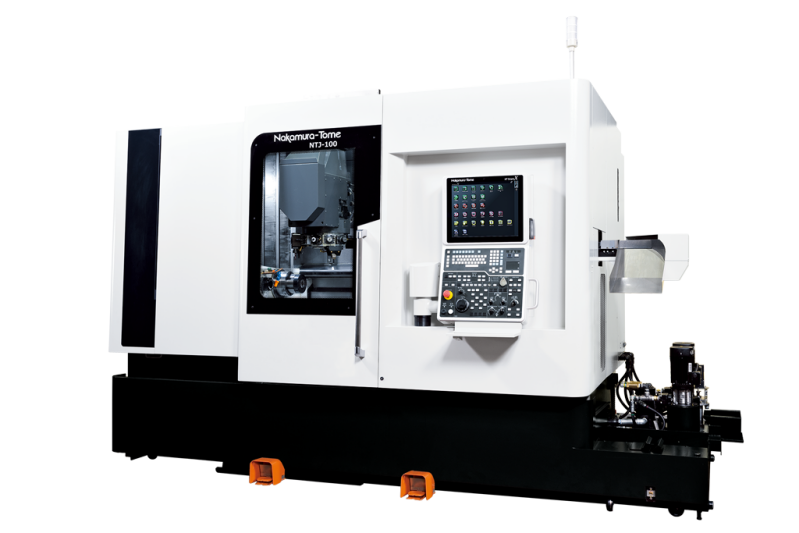

Features der NTJ-100

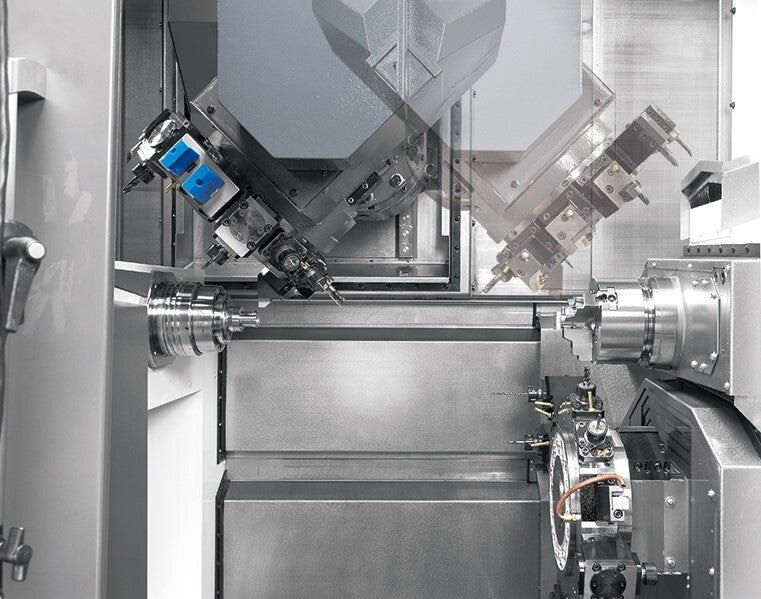

Turret B-axis Swiveling Range 182° In Addition to Angular Drilling and End Milling, Arbitrary Contour-Milling Can Be Performed with Standard Driven-Tool Holders
Upper turret with a B-axis, having a swiveling range of 182°. Up to 48 tool stations! Reduce setup time with permanent tooling. Simultaneous cutting with upper and lower tools on L/R opposed-spindles ensures balanced processes and faster cycle times.

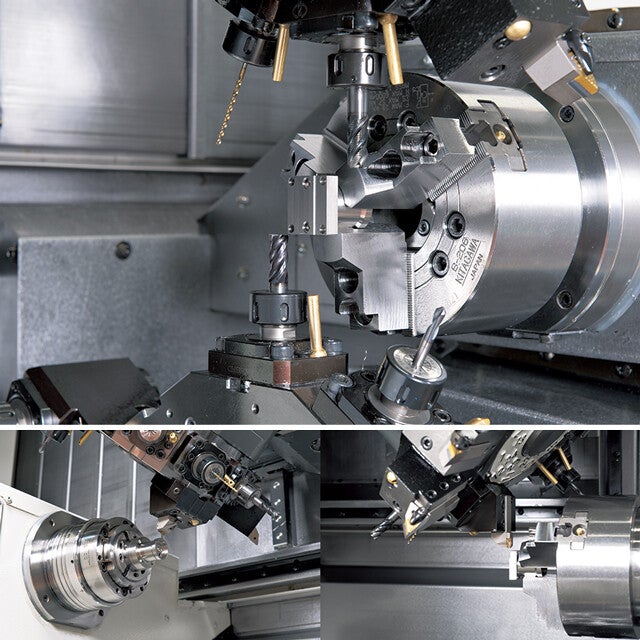

Both upper and lower turrets have milling and Y-axes.
Upper Y-axis travel is 80 mm. Lower Y-axis travel is 65 mm. Milling motors have 7.1/2.2kW power and 6,000min-1 max. speed.
Technische Daten
